01

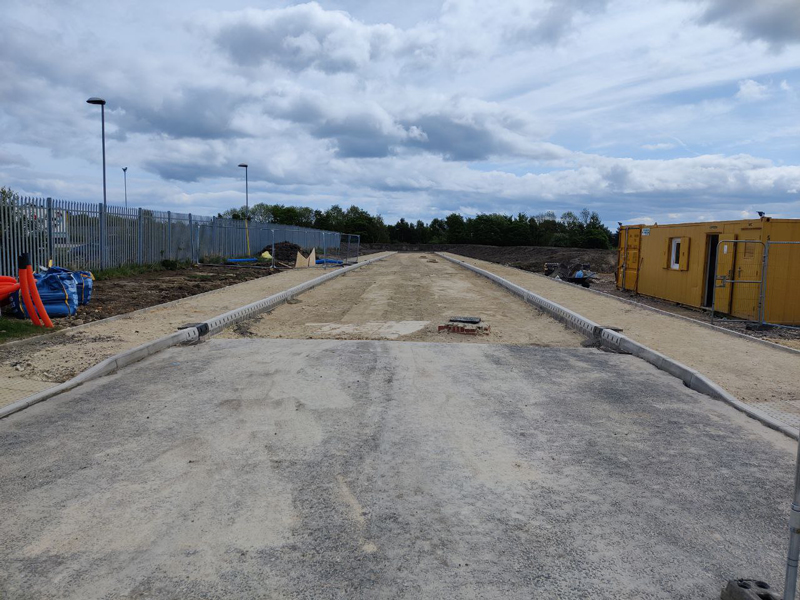

Road Layout

Designing any road by taking into account its physical dimensions and its relationship with the land.
  • 2D road layout design
  • Vehicular swept path analysis
  • Visibility checks
02

Engineering Appraisal

Drainage assessments, preliminary road levels and preliminary drainage design.
Levels
  • Preliminary road level design
  • Indicative finished floor levels
  • Indicative retaining height assessment
  • Earthwork and cut and fill analysis
Drainage
  • Drainage appraisal/strategy
  • Flood risk assessment
03

Adoptable Detailed Design

Including road and drainage design according to adoptable standard.
Levels
  • 2D and 3D highway design
  • Surface and kerb layout design and construction details
  • Section 278 submissions and technical approvals
  • Section 38 submissions and technical approvals
  • Ground modelling
Drainage Design
  • Drainage modelling and calculation
  • Adoptable drainage layout
  • Impermeable areas
  • Longitudinal sections
  • Surface & foul water manhole schedules
  • 1:20 manhole schedules
  • Flood routing plan
  • Section 104 submissions and technical approvals
04

Private Areas Design

Detailed external levels and private drainage designs based on our detailed site designs.
External Works Design
  • Levels design for gardens, driveway, pathways
  • Identify underbuild/overbuild with height
  • Car park design
Private Drainage Design
  • Foul and surface water private drainage design
  • SVP and RWP connections to the private drainage network
  • Private gullies and linear channel drain locations
